NCVIEW/NCVIEW Neo/NCVIEW MC3 2020 Release Notes

New Features Overview

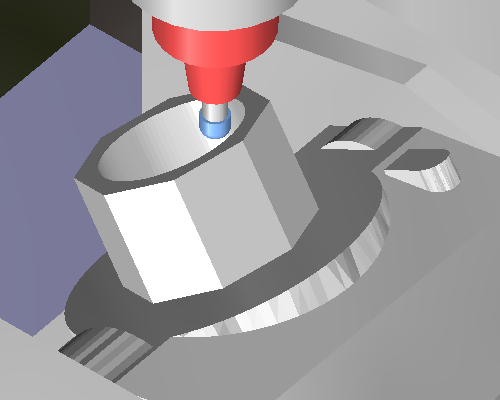

Expanded the Tilted Working Planed command.

Added to support Tilted Working Plane command based on Roll-Pitch-Yaw. (201605003)

release2020-1a release2020-1b

Added to support automatic tool offset amount settings.

It possible to set tool length compensation amount and cutter compensation amount collectively from the registered tool shape.

release2020-2a release2020-2b

Enabled to more precise totaling of processing time and process flow.

  • Expanded to set individually of rapid traverse feed rate on additional axis. (U, V, W Axis)

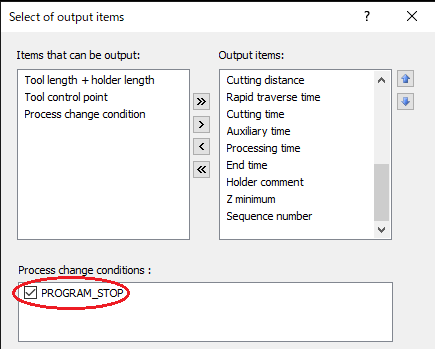

  • Expanded to process flow can be divided and output with M00.

release2020-3a

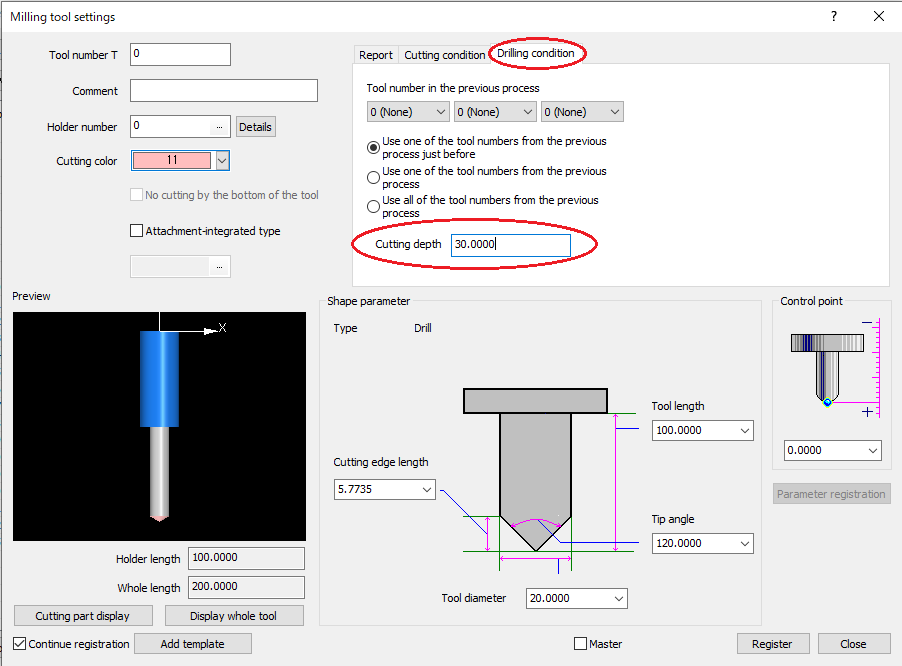

Added the check function of cutting depth for Canned cycle.

It possible to specify the upper limit of cutting depth parameter Q in drilling tool when deep hole cycle commanded.

release2020-4a

Expanded the OSP controller.

  • Supported “IF-THEN” directive.
  • Supported contour generation and coordinate system conversion. (201102006)
  • Supported XZC 3-axis simultaneous control of G101 contour generation.
  • Supported common variable V.
  • Expanded workpiece coordinate system on MULTUS.

Expanded SIEMENS controller.

  • Supported Helical interpolation.
  • Supported parameter of maximum retraction in tool direction in CYCLE800. (201906004)

Expanded the FANUC controller.

  • Expanded P-CODE variables.

Expanded the HEIDENHAIN controller.

  • Added to support Three-dimensional tool compensation.（LN X_ Y_ Z_ TX_ TY_ TZ_）

Expanded the TOSNUC controller.

  • Added to support Symbol Definition operation (DS operation) based on TOSNUC.

Expanded the option parameter of tool offset number.

Added the following machine commands. Please refer to the HELP.

  • NC_PARAM SETD_OFFSET
  • NC_PARAM SETD_WEAR
  • NC_PARAM SETL_OFFSET
  • NC_PARAM SETP_OFFSET
  • NC_PARAM SETP_WEAR

Improved usability.

  • Reload configuration file.
  • Increase the maximum number of MACLIB file.

Main Improvements and Modifications

  • Improved scope of coolant and spindle rotation check when cutting off.
  • Fixed G53 fixture offset cancel directive for TOSNUC.
  • Fixed unauthorized processing at tool tip boundary point of “user defined turning” and “user defined drilling” settings.
  • Fixed canned cycle repetition during tool position offset. (201802009)
  • Fixed model comparison.
  • Fixed temporally files failure.
  • Fixed STL file input of VirtualMachine.
  • Improved the movement of slant rotating axis.
  • Fixed slide operation error in Workpiece Jig Settings Dialog.
  • Fixed Tool change process when the axis name and address are different in VirtualMachine .
  • Fixed “Set Component” of VirtualMachine.
  • Improved processing of incorrect format NC data in SIEMENS.
  • Fixed SIEMENS drilling cycles with _AMODE parameter.
  • Fixed Status Display (SIEMENS Tool length offset).
  • Improved Status Display (HEIDENHAIN).
  • Fixed coordinate system comparison of CUTCOMP_T.
  • Fixed input process of attachment number.
  • Improved collision and approach adjudication. (201901001)
  • Improved Status Display (SIEMENS compensation amount).
  • Fixed allowable axis direction of SIEMENS CYCLE800. (201902007)
  • Fixed R variables processing. (201903006)
  • Fixed Tool Center Point Control operation (when pivot length is negative).
  • Fixed stroke error processing of SIEMENS CYCLE800 (_ST parameter).
  • Fixed retraction process of SIEMENS CYCLE800 (_FR parameter).
  • Fixed loading process of MACHINE file (.mch).
  • Fixed the adjustment amount of STL operation.
  • Fixed conversion process from STL to workpiece shape.
  • Show the current file name at project file saving (201908001) .
  • Improved collision adjudication when the turning tool contacts the workpiece. (201310003)
  • Improved accumulated time accuracy of axis motion time in tool center point control operation. (201604005、201905005)
  • Fixed rotate direction failure during tool center point control operation. (201902006)
  • Improved macro argument processing.
  • Fixed delete operation of combination holder process.
  • Fixed preview of “user defined holder”.
  • Fixed ESC key process at holder settings dialog.
  • Improved break point process after create the process flow.
  • Improved “Excessive offset vector” process of cutter compensation on FANUC. (201908003)
  • Improved false recognition of sub-program on MELDAS. (201909003)
  • Fixed incorrect model comparison of specific workpiece placement.
  • Fixed file list error at DXF Drawing.

List of Support Reception Numbers

201802009、201901001、201902007、201903006、201908001、201310003、201604005、201905005、201902006、201908003、201909003、201605003、201906004
